Flat sheet membranes
Alfa Laval manufactures polymeric membranes for use in an extensive range of processes applied in the food, beverage, dairy, biotech and pharmaceutical industries. Our membranes cover all cross-flow filtration processes: reverse osmosis, nanofiltration, ultrafiltration and microfiltration
Semi-permeable, polymeric membrane
The basic technology behind membrane filtration involves using a semi-permeable membrane to separate a liquid into two distrinct streams.
Pumping this liquid across the surface of the membrane creates a positive trans-membrane pressure that forces any components smaller than the porosity of the membrane to pass through, forming the permeate. Any components larger than the pore size simply cannot pass through, and remain behind in what is called the retentate.
The surface of the membrane is kept free of blockages by the force of the liquid flow moving parallel to the membrane surface.
Alfa Laval membranes
Membrane filtration is becoming increasingly popular in high-hygiene processes that include:
- concentration and purification
- clarification and fractionation
- product recycling and recovery
- product and effluent upgrading

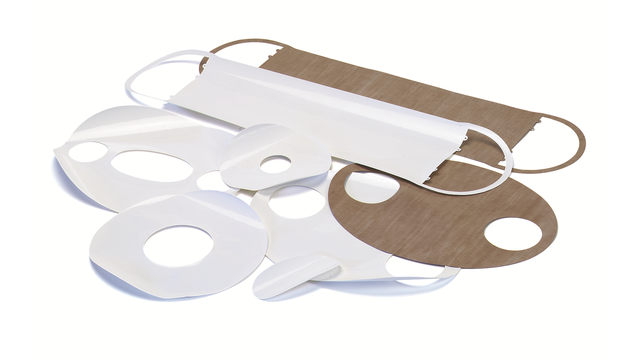

The range of flat sheet membranes from Alfa Laval covers all cross-flow filtration processes: reverse osmosis, nanofiltration, ultrafiltration and microfiltration. The membranes are available by the metre, as 20 x 20 cm sheets or cut into flat sections to fit into all configurations of the unique plate-and-frame modules, also manufactured by Alfa Laval.
- wide range of different membrane types
- all filtration processes covered: reverse osmosis, nanofiltration, ultrafiltration and microfiltration
- resistant to high temperatures and pH
- all materials comply with EU Commission Directive and FDA regulations
- available by the metre, as standard sheets or pre-cut to fit into Alfa Laval plate-and-frame modules
- own Alfa Laval manufacture
How it works
Microfiltration (MF) membranes from Alfa Laval are extremely cost-effective to operate, largely as the result of the low energy consumption involved. They also have the advantage of eleminating the frequent replacement and disposal of the cartridges and other consumables used in traditional dead-end filtration
Alfa Laval microfiltration membranes are extremely durable, with service lives that can extend over more than five years
Microfiltration is used on feed streams where the aim is to remove small-diameter dispersed solids such as bacteria, fat and oil globules without affecting the balance of the components dissolved within the stream.
Ultrafiltration (UF) uses membranes in which the pores are somewhat smaller, with a cut-off range from 1,000 to 100,000 Molecular Weight (MWCO), and where the applied pressure is relatively low.
Salts, sugars, organic acids and smaller peptides pass through the pores of the membrane, whereas proteins, fats and polysaccharides do not.
Using appropriate ultrafiltration membranes also makes it possible to fractionate a feed stream into two distinct streams. Each contains dissolved components with different molecular weights.
Nanofiltration (NF) uses membranes with pores that are even smaller - down to 300 daltons. Operating at pressures of up to 50 bar, small ions pass through, whereas larger ions and most organic components do not.
Alfa Laval nanofiltration membranes are used for the high-yield concentration and demineralization of products such as whey and ultrafiltration permeate. These special membranes are used for filtering out large salts with a devalence in excess of 2, while small monovalent salts pass into the permeate. They can also be used in producing low-alcohol beverages, because the alcohol component passes through the membrane, while the colour and aroma remain in the retentate.
Reverse osmosis (RO) uses membranes with pores to minute that only small fractions of salts can pass through, along with the water that is the prime component of the permeate.
Certain organic compounds with low molecular weights can also pass through - but only to a limited extent. However, it is impossible for any other components suspended or dissolved within the liquid flow (salts, sugars etc.) to do so.
Alfa Laval reverse osmosis membranes are used for the high-flux concentration of either the direct feed stream or permeates from ultrafiltration and nanofiltration.
All materials used for the production of Alfa Laval membranes, in both spiral-wound and flat-sheet designs and configurations, comply with EU Regulation (EC) 1935/2004 and Commission Directive 2002/72/EC as well as FDA regulations (CFR), Title 21. The membranes are thus suitable for use within food and pharmaceutical processing applications.
These compliance also extend to the equipment and fittings related to membrane operations, including items such as plate-and-frame units, element housings and pumps.
詢問產品報價關於 Flat sheet membranes
Most types of membranes are cast onto a backing material made of polyester.
Certain special membranes are available using polypropylene instead, making them capable of withstanding high temperatures and high pH values.
These so-called pHt membrane types can operate continuously at high temperatures and also withstand high-temperature (60°C) cleaning with pH values in the range 1-12.5. They can also be sanitized using water at temperatures as high as 90°C.
