SB Self-cleaning CO₂ valve

The Alfa Laval SB Self-cleaning CO₂ Valve is a combination gas supply-gas vent valve to control the flow of carbon dioxide in tank top systems and other applications in order to vent and/or pressurize a vessel. Fully cleanable and self-draining, this hygienic valve provides safe, reliable and cost-effective gas management.

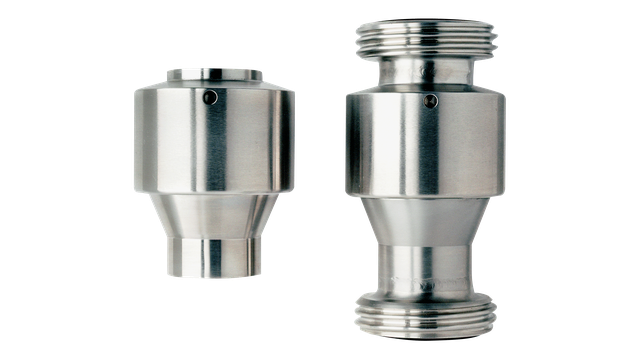

sb-self-cleaning-co2-valve-front 640x360

Self-regulating valve that controls the flow of carbon dioxide through tank top systems and other

Cost-effective, hygienic design
Safe, reliable operation
Minimized risk of overpressure and underpressure
Self-cleaning and self-draining
Straightforward installation

This gas management valve is designed to vent and/or pressurize vessels used in hygienic applications, mainly used in brewery industries.

Safe, reliable operation

The straightforward design of this gas management valve, featuring an internal polypropylene valve body and stainless steel spring, provides long-lasting operation. By minimizing the risk of overpressure or under pressure, the valve contributes to safe, reliable operation and maximum uptime.

Hygienic self-cleaning valve

Manufactured of AISI 316L stainless steel, the valve features a special drilled opening in the valve body, which effectively cleans all valve parts during Cleaning-in-Place (CIP). This minimizes the risk of contamination. Alfa Laval 3.1 traceability certification is also available upon request.

Product benefits

Safe, reliable operation
Cost-effective hygienic design
Straightforward installation
Easy to clean

工作原理

Construction

The valve consists of an AISI 316L stainless steel valve housing, spring, plug and EPDM seal. The valve housing consists of two components held together by a threaded connection. Inside there is a valve body made of polypropylene and a stainless steel spring to keep the body in open position.

The valve is typically positioned as an integrated part of the gas/CIP pipe at the top plate. It can be mounted at an angle of 45° (maximum) to the ideal vertical position. It can also be integrated with a SCANDI BREW^® tank top system.

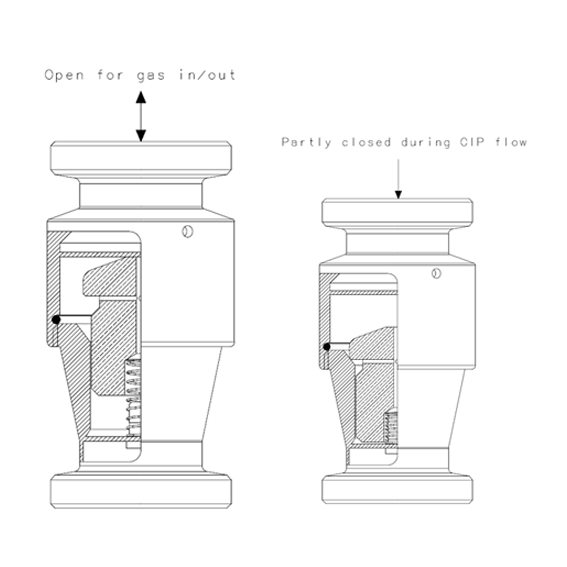

Operating principle

The stainless steel spring forces the valve body open, enabling the full flow of gas to pass through the valve in both directions. To force the valve body into closed position, CIP fluid flows in a countercurrent direction against the spring. Due to the force of the liquid, the valve closes. A special drilled opening in the valve body ensures hygienic cleaning of all valve parts.

Part of a broad valve range

Alfa Laval offers a comprehensive range of valves intended for hygienic applications in the dairy, food, beverage,home care, personal care, biotechnology and pharmaceuticals.
