SB Anti Vacuum House

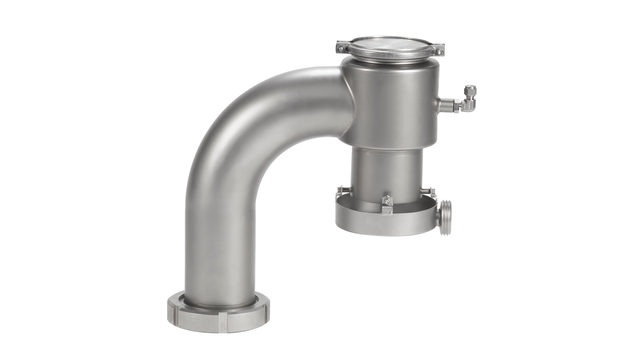

The Alfa Laval SB Anti Vacuum House is a safety valve housing that minimizes the risk of implosion in closed process tanks or vessels that are subject to vacuum conditions while emptying the tank, cool rinsing after hot-cleaning, or caustic cleaning in a CO₂ atmosphere. It helps protect tanks from vacuum conditions that may cause tank implosion, damage or deformation. It can be combined with safety valves or pressure regulators mounted at the tank top.

Anti vacuum house minimizes the risk of implosion in closed process tanks

Minimal risk of tank collapse due to internal vacuum conditions
Fully cleanable via built-in Cleaning-in-Place nozzle
Easy to integrate
Low investment due to simplified installation
Can be combined with other valves in a customized tank top

This is a cost-efficient, reliable and easy to install, it provides effective vacuum protection, while boosting process reliability, equipment and personnel safety. This anti-vacuum valve housing is designed for use in hygienic process tanks in the brewery, dairy, food, beverage and many other industries.

Effective vacuum protection

When high process safety and production reliability are critical, this unit help protect tanks from vacuum conditions that may cause tank damage or deformation and product leakage.

Cost-efficient, reliable and easy to install, it provides effective vacuum protection, while boosting process reliability and safety.

Versatile hygienic design

In addition to providing tank vacuum protection, the unit can be used in combination with safety valves or regulating valves to provide overpressure protection and process protection, respectively.

Excellent valve cleanability

The anti vacuum house makes it possible to achieve the exceptionally high levels of hygiene. Simply connect the unit to the main Cleaning-in-Place (CIP) system using a CIP nozzle. This enables fast and effective cleaning during the routine tank CIP cycle.

Product benefits

Minimal risk of tank collapse due to internal vacuum conditions
Fully cleanable with CIP system
Easy to integrate
Low investment due to simplified installation

工作原理

Construction

Compliant with PED 97/23/EC, the Alfa Laval SB Anti Vacuum House consists of an AISI 316L stainless steel house, a vacuum tail and an EPDM seal. The valve can be used as an integral part of a SCANDI BREW^® tank top system.

Operating principle

The anti vacuum house provides protection against tank collapse due to internal vacuum conditions. When used with safety valves, it helps protect the vessel and ensure discharge if pressure in the tank exceeds the preset opening value. When used with regulating valves, it helps ensure pressure relief if pressure in the tank exceeds the preset opening value.

Cleaning-in-Place (CIP)

During every tank cleaning cycle, a small volume of cleaning fluid (approximately 500 to 800 l/min.) will pass the valve body and clean the seat. To ensure thorough flushing of the valve seat, force opening of the valve is required and must be done when there is no pressure in the tank. The use of a drain collector is recommended to prevent the CIP fluid from spilling onto the tank.

Options

For tank overpressure protection and process protection, the SB Anti Vacuum House can be combined with a CO₂ house, pressure relief valve and pressure exhaust valve.

Part of a broad valve range

Alfa Laval offers a comprehensive range of valves intended for hygienic applications in the dairy, food, beverage,home care, personal care, biotechnology and pharmaceuticals.
