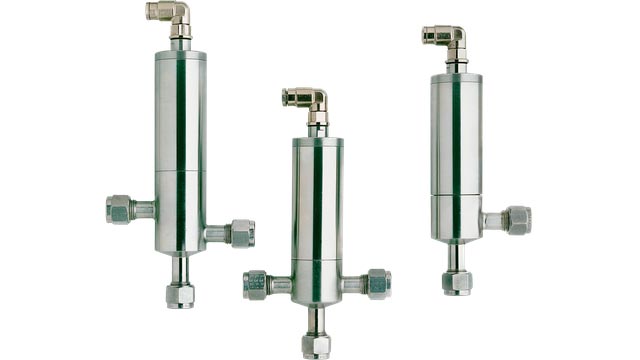

SB Mini Flow Valve
The Alfa Laval SB Mini Flow Valve is a reliable single seat valve with a single contact surface between the plug and the seat to minimize the risk of contamination. Designed for working in a gas or liquid environment, it is used to close or divert small product flows when hygienic shut off and changeover are required.
Flow valve designed to close or divert the flow of liquids or gases in a broad range of applications
- Versatile shut-off or changeover valve
- Handles small flows of liquid or gas with ease
- Compact and hygienic design
- Low maintenance
- Fast-acting
The SB Mini Flow Valve is designed for diverting or closing small product flows in a broad range of applications across the brewery, food, dairy, beverage and many other industries. The valve can be used as an integral part of a SCANDI BREW® tank top system.
Close at Hand catalogue
The hygienic equipment product catalogue "Close at hand" includes product leaflets, links to animations, brochures and lists for ordering purposes.
CAD portal
The Alfa Laval CAD portal is an essential platform for downloading detailed product information, 2D drawings and 3D product models.
Versatile shut-off or changeover valve

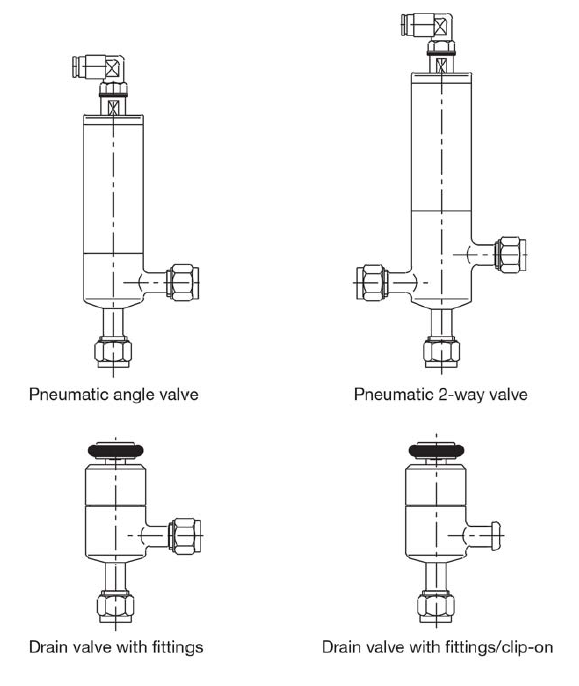

With its cost-effective modular design, the multi-application valve can easily be configured either as shut-off valves or change-over valves to meet virtually any requirement. Choose from a pneumatic angle valve, pneumatic two-way valve, drain valve with fittings or drain valve with fittings and clip-on.
Hygienic design
Made of 316L product wetted steel parts, the Alfa Laval SB Mini Flow Valve is designed for fast, easy cleaning, thereby minimizing the risk of contamination. The valves are supplied with threaded pipe couplings for 6/8-mm pipe.
Product benefits
- Versatile shut-off or changeover valve
- Handles small flows with ease
- Reliable and compact design
- Hygienic design
- Low maintenance
Service
Our dedicated Global Service Network supports you with parts and expertise, wherever you are, whenever you need it. By ensuring greater uptime, availability and optimization, we help bring you peace of mind, and maximize your return on investment. We can work with you to integrate our services into an Alfa Laval Service Agreement for predictable and worry-free operations.
Learn more about our service offer Troubleshooting
Serial number search Find a partner
Please contact us with any queries or questions.
How it works
Construction
The valve comprises valve body, inlet and outlet. It can be used as an integral part of a SCANDI BREW® tank top system.
Operating principle
The valves are in pneumatic or manual execution.
360° 服務和維護視訊
阿法拉伐 Unique 單座閥 - 可維修的執行器
阿法拉伐 Unique 單座閥 - 替換執行器襯套
阿法拉伐 Unique 單座閥 - 產品潤濕密封
阿法拉伐 Unique 單座閥 - 替換產品潤濕密封件
Part of a broad valve range
Alfa Laval offers a comprehensive range of valves intended for hygienic applications in various industries including dairy, food, beverage,home care, personal care, biotechnology and pharmaceuticals:
