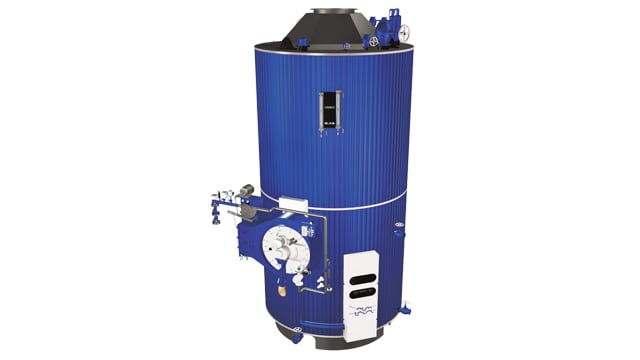

Aalborg OM is a high performance medium capacity oil-fired auxiliary boiler which is intended for steam or hot water production.
Aalborg OM (formerly MISSION™ OM) is a high performance medium capacity oil-fired auxiliary boiler.
It is intended for steam or hot water production, the oil and gas-fired Aalborg OM is supplied as a vertical, pre-assembled boiler unit with both smoke tubes and pin tubes.
Features and benefits of the Aalborg OM product
- Vertical cylindrical boiler made of mild steel
- Integrated control panel
- Pin tube elements
- Top-mounted fittings
- Ready to install
- Designed for operation with a monobloc type pressure jet burner, rotary cup burner or steam atomizing burner.
Alfa Laval Aalborg steam atomizing burner-
The Aalborg KBSA steam atomising burner is designed for use on our side-fired boilers and can be delivered premounted. The use of oil flowmeter and modulation of the atomizing steam pressure ensures a stable combustion at all loads, also in the lower end. All burner mountings are arranged to ensure easy installation and maintenance.
- Capacity range: 1.7 – 46.9 MW
Its furnace consists of membrane walls with a number of large tubes in between, and sufficient circulation is ensured by downcomers placed within these tubes.
The optimally designed pin-tube elements, which ensure high performance, are also used to support the top plates of the furnace and boiler.
- Thermal output: up to 31.5 MW
- Steam capacity: 8.0 - 45.0 t/h
- Design pressure: up to 11 or 18 bar(g)
- Cruise vessel
- VLCC tanker
- Suezmax tanker
- Aframax tanker
- Panamax tanker
- FPS unit
