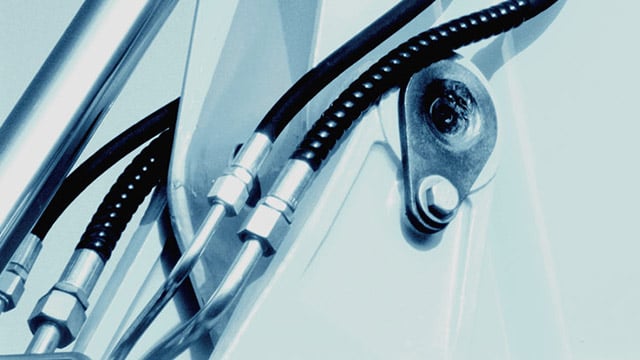

The design, performance and reliability of a hydraulic oil cooler contributes to maximising the operating time of your equipment. This is what you get with Alfa Laval Dedicated Oil Cooler – DOC.

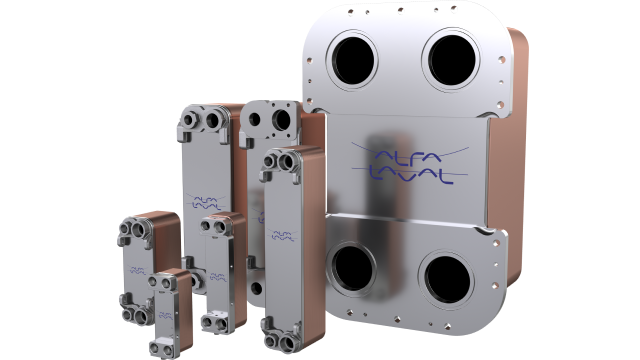

With regard to their cooling capacity, the DOC series of brazed plate heat exchangers comprise the smallest units on the market. Their compactness allows you greater flexibility in configuring, integrating, and installing a hydraulic oil cooling system with associated equipment.
Particulars required for quotation
To enable Alfa Laval’s representative to make a specific quotation, enquiries should be accompanied by the following particulars:
- Flow rates required
- Temperature program
- Physical properties of liquids in question
- Desired working pressure
- Maximum permitted pressure drops
The heating surface consists of thin corrugated metal plates stacked on top of each other. Channels are formed between the plates and corner ports are arranged so that the two media flow through alternate channels, normally in full countercurrent flow. The media are kept in the unit by a brazed seal around the edge of the plates. The contact points of the plates are also brazed to withstand the pressure of the media handled.
Standard materials for Alfa Laval DOC
Cover plates: Stainless steel AISI 316
Connections: Stainless steel AISI 316
Plates: Stainless steel AISI 316
Brazing material: Copper
