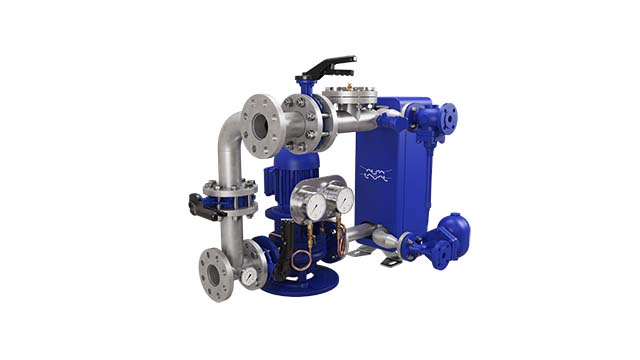

HWL - Hot water loop

For heating and circulation of hot water to the freshwater generator. Designed to secure continuous maximum freshwater´production, and to ensure constant temperature and flow, even when the engine is not running.

hot water loop

Features

  • Modular, compact design
  • Flexibility in operation
  • Automatic operation
  • Prepared for pre-heating of the main engine or other equipment



Benefits

Simple, low cost installation

Low space requirements

The correct amount of heating water at the correct temperature ensures maximum production of fresh water at all times

Reliable operation due to self-adjusting steam regulation equipment

Saves man hours, cost and installation of a pre-heater for the main engine or other equipment

工作原理

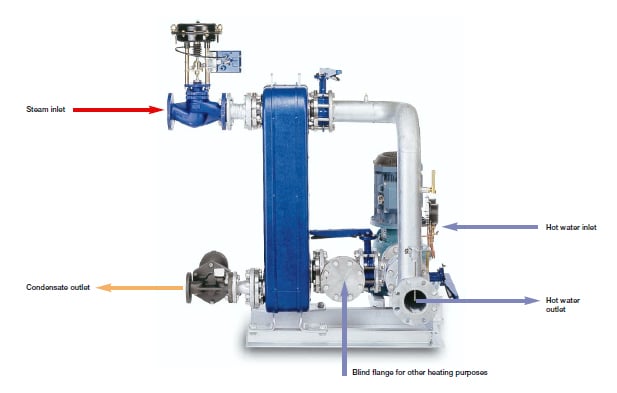

The water in the Hot Water Loop is heated by means of steam. The amount of steam is regulated by a steam control valve, based on the set point of a temperature controller mounted in the hot water outlet line. A hot water pump ensures a constant flow to the Hot Water Loop heat exchanger, and makes recirculation possible when the engine is at low load or stopped. This pump must be running when the Hot Water Loop is used for engine preheating. A blinded flange connection makes it possible to connect the Hot Water Loop for various heating or preheating purposes.
