ThinkTop® V50

Alfa Laval ThinkTop V50 is a compact valve control unit for hygienic valves. It offers a single sensor solution and can be fitted with 0 or 1 solenoid valves, ensuring unmatched control of Alfa Laval DV-ST, Butterfly valves and Single seat valves for use in the dairy, food, beverage, brewery and pharmaceutical industries.

ThinkTop V50

Intuitive, intelligent hygienic valve control

  • Auto Setup, Live Setup and Flex Setup streamline and making setup quick and easy
  • Smart, continuous monitoring through 24/7 self-diagnostics
  • 360° LED status indication, easily visible from all angles
  • Built-to-last: IP69K rating and vibration proof
  • Savings of CIP liquid consumption on drain valve cleaning by up to 95% when using ASi and IO-link models

Control your hygienic valves with peace of mind using the Alfa Laval ThinkTop V50 valve control unit. A single sensor target control board handles all valve functions and communication. No adapters, special tools or cover screws are required. Non-crossing, colour-coded air hoses ensure straightforward connections. On top of this, enjoy a minimalist aesthetic housing made of composite material.

With only one sensor target and included adapter, ThinkTop V50 are easily retrofittable to existing Alfa Laval valves.

Close at Hand catalogue

Close at hand brochure



The hygienic equipment product catalogue "Close at hand" includes product leaflets, links to animations, brochures and lists for ordering purposes.

Find an Alfa Laval product

CAD portal






The Alfa Laval CAD portal is an essential platform for downloading detailed product information, 2D drawings and 3D product models.

Visit the CAD portal



.

Service

Our dedicated Global Service Network supports you with parts and expertise, wherever you are, whenever you need it. By ensuring greater uptime, availability and optimization, we help bring you peace of mind, and maximize your return on investment. We can work with you to integrate our services into an Alfa Laval Service Agreement for predictable and worry-free operations.

Learn more about our service offer                                                         Troubleshooting

Spare parts                                                                                                 Technical support

Serial number search                                                                                 Certification



How can we help you?Please contact us with any queries or questions.

Contact us

.

Alfa Laval ThinkTop®. Rethought.

Intuitive & Fast

Smart & Adaptable

Durable & Reliable

Aesthetic Design

Easy-to-access digital service and support

Access the service instruction manual and videos online or get the direct support you need using a convenient QR code located on the Alfa Laval ThinkTop housing.

The V-series fits all Alfa Laval hygienic valves. Select the right Alfa Laval ThinkTop valve control unit for your hygienic process needs based on the number of solenoid valves required. The ThinkTop V50 series fit on top of the Alfa Laval DV-STbutterfly, single seat, SMP-BC and UMP CIP valves.

.

Exploit the power of IO-Link

Demand more from your valves with the Alfa Laval ThinkTop IO-Link. The ThinkTop IO-Link enhances communication between your hygienic valves and Industry 4.0 automation systems. The point-to-point IO-Link communication protocol connects sensors and actuators, regardless of fieldbus, to your automation systems. This makes meaningful real-time data easier to capture, store, analyze and act upon.



  • Enhanced flexibility which lets you change data parameters and process data from a remote automation system
  • More uptime and less cost due to 24/7 data monitoring and diagnostics
  • Comprehensive overview of data for timely preventative maintenance and optimized performance
  • Clearly visible LEDs with customizable colours and a 'wink' function that makes it easier to locate a valve from the factory floor

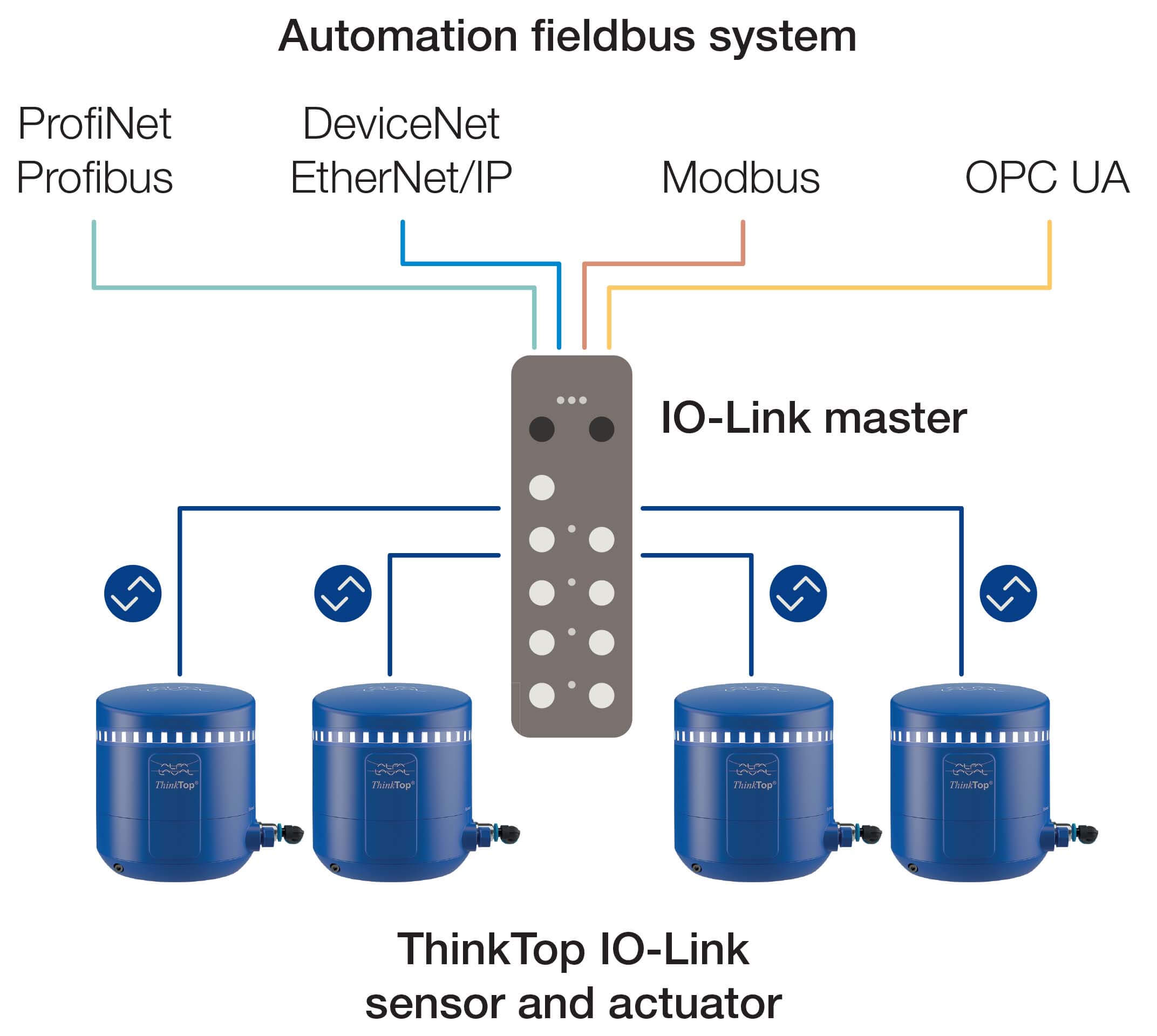

ThinkTop valve control unit IO Link illustration

Documents

How it works

.

The Alfa Laval ThinkTop V50 valve control unit offers a single sensor solution for Diaphragm valves, Butterfly valves and Single seat valves and it can be fitted with 0 or 1 solenoid valves. The ThinkTop valve control unit converts the electrical PLC output signals into mechanical energy to energize or de-energize the air-operated valve, using the physical sensor target mounted on the valve stem.

Experience a seamless and speedy installation process with the Alfa Laval ThinkTop valve control unit's auto setup feature. To begin, just press the "Select" button, followed by the "Enter" button, and the setup sequence will initiate automatically. The process adapts according to the number of solenoid valves connected to the control unit. Additionally, if needed, you can perform a "Live setup" without disassembling the control head, enabling convenient remote configuration.



Pulse seat clean: cut CIP liquid consumption on drain valve cleaning by up to 95%

Drain valves comprise 20% of all valves in typical process plants. Imagine the water savings you can realize by adding the Alfa Laval ThinkTop pulse seat clean to your drain valve cleaning process.

In less than a second, an intensive jet of CIP liquid pulses through the gap between the valve house and valve seat, creating high turbulent flow and leaving the valve spotless. The result? Quick and effective cleaning, more uptime, and increased end-product yields.
