Type C

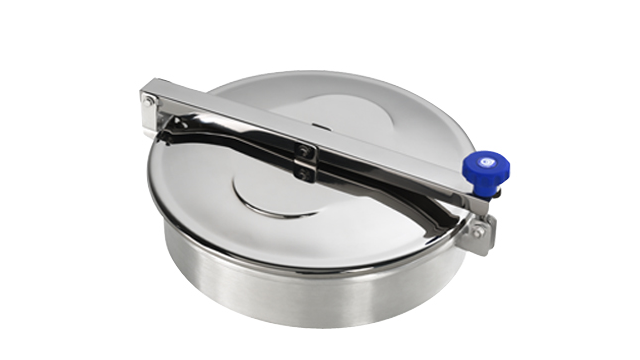

Alfa Laval Type C access tank covers are a range of stainless steel manway covers that provide a secure fit for openings of tanks or containers. They offer a quick, easy and convenient means of entry and egress to tank interiors. They also provide a closeable means of access to the interior of the vessel, situated above or below the liquid level for tank top installation.

High-quality openings that provide quick, easy and convenient entry and egress to tank interiors

Versatility to cover all tank needs
Swing flexibility due to optional hinge, for opening inwards, outwards or sideways
Glass lid for non- or low-pressure (1 bar) applications

Alfa Laval Type C access tank covers are designed for use on static tanks, process tanks, palletized road tankers and standard road tankers in a wide range of applications across the dairy, food, beverage and many other industries. Type CG and CG-LP are designed for use on tanks, where a glass lid is used to visual inspection of the tank interior.

Covering all tank needs

Alfa Laval offers a complete range of high-quality manhole covers to meet virtually every requirement. More than 50 different types of oval, circular and rectangular covers are available. These securely fit the openings of pressure, non-pressure and low-pressure tanks, both above and below the liquid level. A wide variety of sizes with frame heights between 60 mm and 200 mm is available. Tank covers can be fitted with different sight glasses and relief valves.

Hygienic design

For hygienic processes, there are two models from which to choose: the oval-shaped Alfa Laval LKD Tank cover and the circular Alfa Laval LKDC Tank cover in standard and pressure models for both above and below the liquid level. These comply with 3-A Sanitary Standards and the U.S. Food and Drug Administration (FDA) Declaration of Conformity.

Swing flexibility

Tank covers can be supplied with an inwards opening swing for inspection purposes as well as outwards and side-swing openings when physical entry is required. For washing and bottling machines, Alfa Laval has small rectangular and circular covers for use as hand doors.

Materials, surfaces and standards

Alfa Laval Tank covers are available in AISI 304 or AISI 316L stainless steel with EPDM, NBR, FPM or Q (silicone) seal materials. Surface finishes include electro-polished, brushed and acid pickled, and vary from Ra 0.4 to Ra 0.3 to meet the exceptionally high quality requirements of hygienic processes.

Alfa Laval Tank covers meet the requirements of the European Pressure Equipment Directive (EC unit verification), Module G and the American Society of Mechanical Engineers (ASME). Upon request, 3.1 Material Certification in accordance with EN 10204 can be supplied.

For more information, please refer to documentation and the Tank cover selection guide (.pdf 1 250 KB).
