Packinox plate heat exchangers

Packinox+

A Packinox+ heat exchanger is the optimal solution for high-capacity heat recovery in processes characterized by high pressures and temperatures. A single Packinox+ offers higher capacity than systems comprising several large shell-and-tube heat exchangers, resulting in significantly lower CAPEX and OPEX.

Robust performance

Combining high temperature and pressure resistance with exceptional thermal and hydraulic performance, Alfa Laval Packinox+ is a compact solution for maximal energy recovery in positions with high flowrates, temperatures, and pressures.

The Packinox design is well proven and there are more than 500 units in operation in plants across the world. The high performance, high reliability and short payback time has made Packinox the industry standard in energy-intensive applications such as catalytic reforming and aromatics production.



  • Outstanding heat transfer efficiency, enabling large energy savings and cuts in CO2 emissions
  • Robust design brings reliable uptime – even in the toughest applications
  • Perfect for heat recovery duties with very long temperature programmes
  • Ideal for asymmetric flows thanks to FlexFlow technology
  • Low CAPEX and short payback time

Contact us for more information

Webinar

Packinox+ webinar_SoMe_EN_1200x628.jpg

Improving performance with Packinox+

Watch our webinar from September 22 to find out how Alfa Laval Packinox+ heat exchangers can help improve the performance of your large-scale industrial heat recovery processes. You will also learn more about our new FlexFlow technology.

  • Cut costs
  • Boost efficiency
  • Slash carbon footprint
  • Lower CAPEX


Watch webinar

Configurations and capabilities

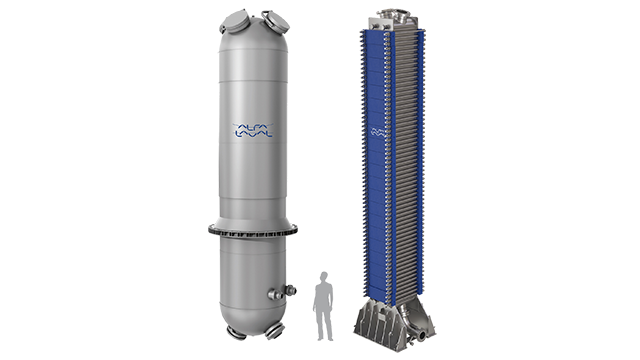

Packinox+ is available as plate-and-shell configuration and plate-and-frame configuration. A single Packinox+ heat exchanger offers the same heat transfer capacity as multiple shell-and-tube heat exchangers with an equivalent heat transfer area of up to 35,000 m2.

See models and numbers

Packinox heat exchanger plate and shell plate and frame


How it works

A Packinox+ combines high-pressure durability with superior thermal performance.

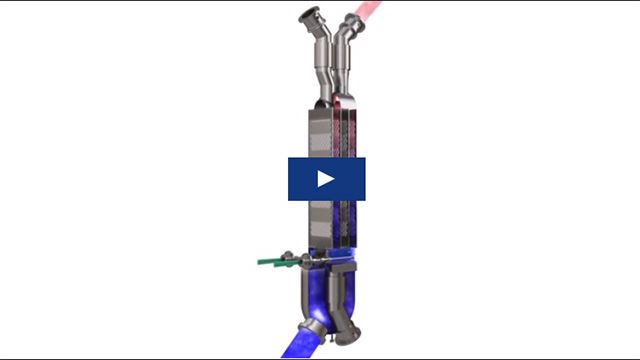

Watch the animation and download technical data sheets to find out more about the working principle and design of a Packinox+ heat exchanger, and the differences between the plate-and-shell and plate-and-frame models.

Learn more


References

We have been working with companies all over the world, in various industries, to help them maximize flexibility, reliability, and yield.

Read more about how Alfa Laval’s Packinox heat exchangers, agile project management, and expert technical support have made us these customers’ first choice.

Read customer stories

Packinox heat exchangers experts.png

Meet our experts

Listen to our heat exchanger experts as they share their expert knowledge about how you can maximize heat transfer in your processes.

They will cover a range of topics, ranging from long duration energy storage to asymmetric flows for all kinds of applications.

Watch videos


Sustainability

Investing in an Alfa Laval Packinox+ heat exchanger gives a high return on investment, and there are numerous ways a Packinox+ can help improve both your bottom line and your environmental profile:

• Reduced CAPEX
• Lower OPEX
• Increased production
• Lower CO2 emissions

See how it is done

.

Documents

.

Service from A to Z

Our team of service experts is ready to support you throughout the entire lifetime of your Packinox+ heat exchanger with every step from planning to execution.

We offer a complete range of on-site and remote services that ensure maximum operational reliability, great performance, and high total return on investment.

In this video you will see how we ensure performance over time.

Find out more about our service offerings for Packinox heat exchangers

.

Related industries

Unique features

Packinox heat exchanger ensures maximal performance for asymmetric flows

FlexFlow

Maximal performance for asymmetric flows

Packinox heat exchanger maximizes reliability with Explosion Forming

Explosion Forming

High-strength plates with long, reliable lifetime

Packinox heat exchanger with HyperCut increases reliability and reduces pressure drop

HyperCut

Unique plate design that increases reliability and reduces pressure drop


Spray Bar

Effective mixing of the liquid feed and the recycle gas (applicable for the plate-and-shell model only)

Packinox heat exchanger with digital services for maximum uptime and performance

ALOnline

Digital services for maximum uptime and performance


ALOnsite

Qualified support at your facility
