LeviMag®

The Alfa Laval LeviMag® is an aseptic magnetic mixer that uses a patented levitating impeller and advanced design to mix down to the last drop and maximize product yield. Compact, energy-efficient, and easy to maintain, the magnetic mixer is perfect for dairy, food, beverage and other applications with demanding requirements for hygienic production.

阿法拉伐 LeviMag 磁力搅拌器-Alfa Laval LeviMag Magnetic Stirrer

Maximize process economy, minimize product loss

  • Optimized flow with higher efficiency and less energy consumption
  • Mixing down to the last drop for maximum yield due to low agitation and dry-running capability
  • Optimized Cleaning-in-Place thanks to full drainability
  • Minimized downtime due to ease of maintenance

Maximize product yield and quickly realize return on investment due to the dry-running capability of the Alfa Laval LeviMag magnetic mixer. Ensuring gentle product treatment is easy due to efficient mixing at very low speeds. In addition, the open design and low-speed rotation during cleaning contribute to effective residue removal and minimize contamination risks from wear particles.

.

Close at Hand catalogue

Close at hand brochure



The hygienic equipment product catalogue "Close at hand" includes product leaflets, links to animations, brochures and lists for ordering purposes.

Find an Alfa Laval product

CAD 入口網站

以中性或原生 CAD 文件格式下載產品型號。 也可以下載 3D PDF 文件。

查看 CAD 入口網站

Q-doc documentation package

Q-doc documentation in hand.png



Alfa Laval Q-doc is a comprehensive documentation package for our UltraPure equipment, ensuring full traceability of all product contact parts.

Explore the documentation package





Visit the Application & Innovation Centre



Application and Innovation Centre_Kolding_Customer test centre_640x340x2.png

Do you want to identify the optimal equipment for the job and discover tangible savings before deciding on upgrades? In the Alfa Laval Application & Innovation Centre, you can do just that.

Learn more

Optimize™ by Alfa Laval




Optimize™ by Alfa Laval boosts your existing processes and enables up to 90% savings on water, energy and chemicals with only small and no-risk investments.



Read more

.

How does the LeviMag magnetic agitator work

A radial turbine installed inside the tank is rotated via the torque from a magnetic coupling. This creates a mixing of the fluid inside the tank. The patented levitated design of the impeller makes the mixer fully drainable and able to run dry – hence it can mix to the last drop, securing maximum yield.

The unique design of the Alfa Laval magnetic coupling always ensures the levitation of the impeller. This enables the complete drainability of process fluids and the free flow of CIP liquid and steam around all parts of the mixer, ensuring a thorough cleaning. Impeller levitation also eliminates axial wear.

.

LeviMag® magnetic mixer technology

Mix down to the last drop thanks to the four-wing levitating impeller of the Alfa Laval LeviMag magnetic mixer. Minimizing wear and ensuring drainability is easy due to no direct contact between the bearing surfaces and no dead zones.

Service

Get more uptime thanks to low-wear bearings that are easy to maintain and easy for operators to replace on-site. No glue or shrink-fit is required. This minimizes downtime. Plus, there is no need for spare impellers. Tools for easy maintenance are also available.

Product models

The Alfa Laval LeviMag magnetic mixer is available in four sizes with mixing speeds ranging from 10 to 600 rpm, as the mixer’s levitating impeller design eliminates friction. This provides greater process flexibility to handle a wide range of fluid types and mixing duties, such as high-intensity and gentle product mixing.

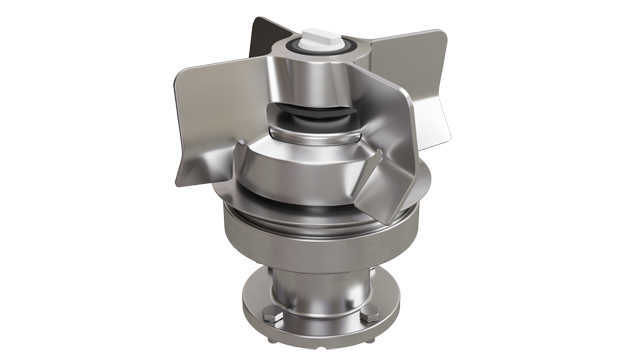

LeviMag impeller for magnetic mixer

LeviMag magnetic mixer exploded view

.

360° Service and maintenance videos



How to replace the female bearing and assemble

How to disassemble and replace the male bearing
